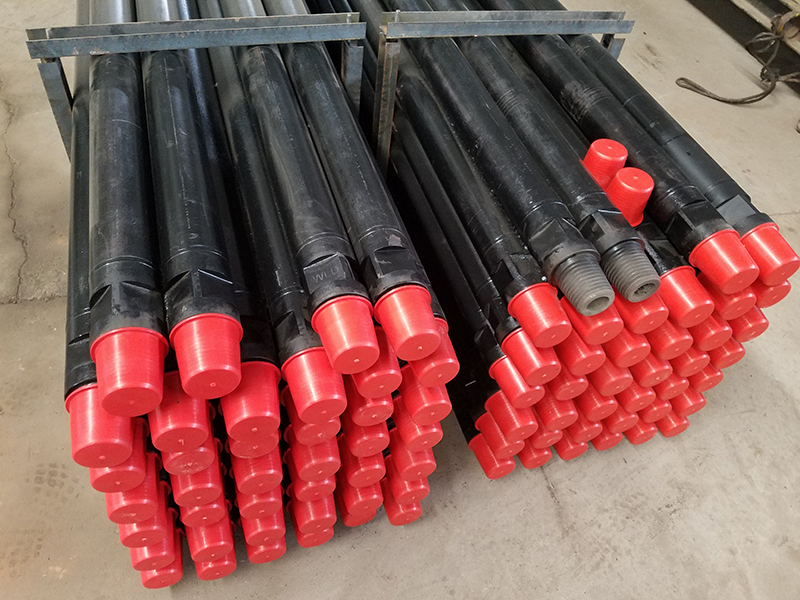

潛孔鉆桿?
潛孔鉆桿廣泛應用于礦山，水井，地熱，石油等各類的潛孔鉆機上。優質碳鋼確保摩擦焊工藝和接頭的緊密結合。
規格:
(2”)50mm ? DTH drill pipe ?with ?API 2 3/8 REG 1000-3000mm 長度
60mm ? DTH drill pipe ?with ?API 2 3/8 REG 1000-3000m 長度
(3”)76mm ? DTH drill pipe ?with ?API 2 3/8 REG 1500-3000m 長度
(3 1/2”)89mm ? DTH drill pipe ?with ?NC26( API 2 3/8 REG) 1500-3000m 長度
(4”)102mm ? DTH drill pipe ?with ?NC31( API 2 7/8 REG) 1500-6000m 長度
(4 1/4”)108mm ? DTH drill pipe ?with ?NC31( API 2 7/8 REG) 1500-6000m 長度
(4 1/2”)114mm ? DTH drill pipe ?with ?NC31( API 2 7/8 REG)or NC35 1500-6000m 長度
(5”)127mm ? DTH drill pipe ?with ?NC38( API 3 1/2 IF) 1500-6000m 長度
序號 |
規格(mm) |
工藝 |
聯接類型 |
||
直徑 |
長度 |
螺紋 |
|||
1 |
50 |
1000-3000 |
API 2 3/8 REG |
摩擦焊接 |
Box/pin |
2 |
60 |
1000-3000 |
API 2 3/8 REG |
摩擦焊接 |
Box/pin |
3 |
76 |
1500-3000 |
API 2 3/8 REG |
摩擦焊接 |
Box/pin |
4 |
89 |
1500-3000 |
NC26(2 3/8 IF) |
摩擦焊接 |
Box/pin |
5 |
102 |
1500-6000 |
NC31 (2 7/8 IF) |
摩擦焊接 |
Box/pin |
6 |
108 |
1500-6000 |
NC31 (2 7/8 IF) |
摩擦焊接 |
Box/pin |
7 |
114 |
1500-6000 |
NC31 (2 7/8 IF)or NC35 |
摩擦焊接 |
Box/pin |
8 |
127 |
1500-6000 |
NC38(3 1/2 IF) |
摩擦焊接 |
Box/pin |

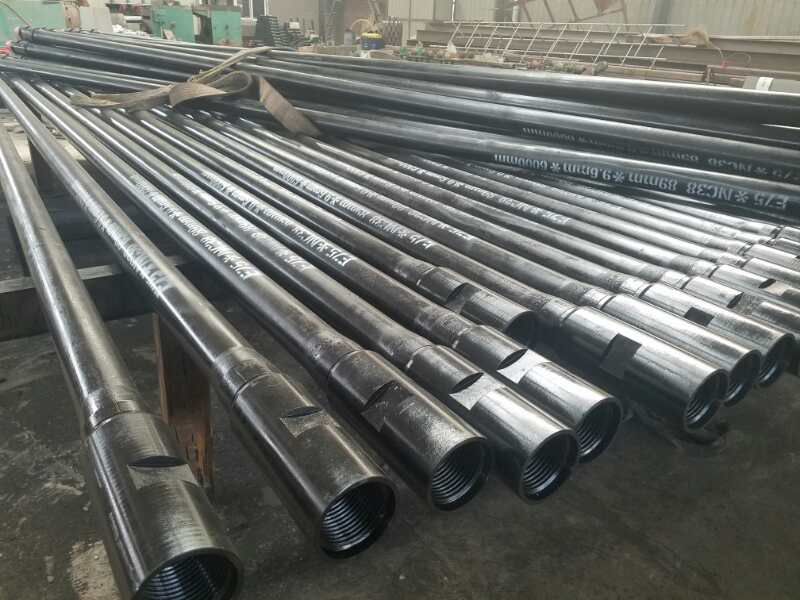

API NC 螺紋潛孔鉆桿
潛孔鉆桿廣泛應用于礦山，水井，地熱，石油等各類的潛孔鉆機上。優質碳鋼確保摩擦焊工藝和接頭的緊密結合。
規格:
(3 1/2”)89mm ? ?DTH drill pipe ?with ?NC26( API 2 3/8 REG) ? ? ? ? ?1500-3000m 長度
(4”)102mm ? DTH drill pipe ?with ?NC31( API 2 7/8 REG) ? ? ? ? ? ? 1500-6000m 長度
(4 1/4”)108mm ? DTH drill pipe ?with ?NC31( API 2 7/8 REG) ? ? ? ? ?1500-6000m 長度
(4 1/2”)114mm ? DTH drill pipe ?with ?NC31( API 2 7/8 REG)or NC35 ? 1500-6000m 長度
(5”)127mm ? DTH drill pipe ?with ?NC38( API 3 1/2 IF) ? ? ? ? ? ? ? 1500-6000m 長度
序號 |
規格 (mm) |
工藝 |
聯接類型 |
||
直徑 |
長度 |
螺紋 |
|||
1 |
89 |
1500-3000 |
NC26(2 3/8 IF) |
摩擦焊接 |
Box/pin |
2 |
102 |
1500-6000 |
NC31 (2 7/8 IF) |
摩擦焊接 |
Box/pin |
3 |
108 |
1500-6000 |
NC31 (2 7/8 IF) |
摩擦焊接 |
Box/pin |
4 |
114 |
1500-6000 |
NC31 (2 7/8 IF)or NC35 |
摩擦焊接 |
Box/pin |
5 |
127 |
1500-6000 |
NC38(3 1/2 IF) |
摩擦焊接 |
Box/pin |

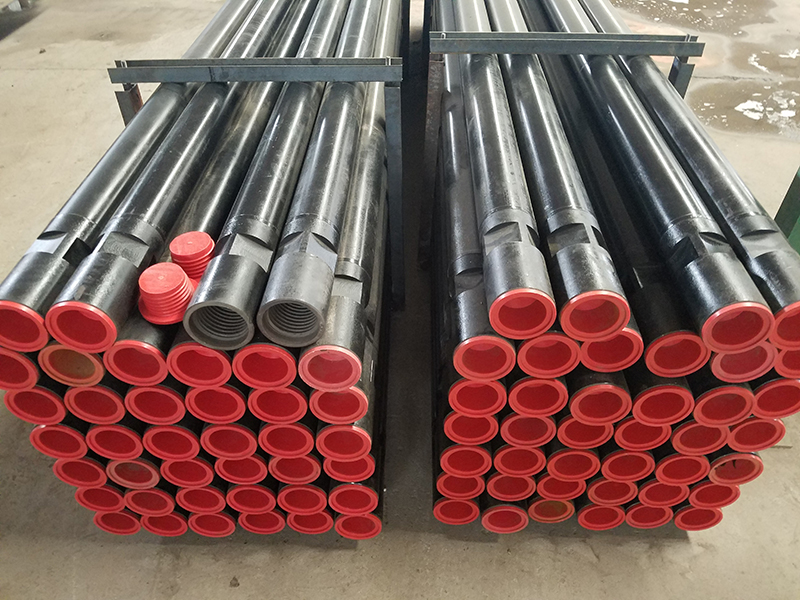

水井鉆桿
水井鉆桿廣泛應用于水井，地熱孔等工程項目上，打的深要求質量高。
規格：?
50mm ??water well drill pipe ?for 200m drill rig?
60mm ??water well drill pipe ?for 400m drill rig?
76mm ??water well drill pipe with API thread?
89mm ??water well drill pipe with API thread?
114mm ?water well drill pipe with API thread?
127mm ?water well drill pipe with API thread?
1. 鉆桿材質: DZ40, DZ50, R780, G105, etc?
2. 接頭材質t: 40Cr, 45Mn2, 35CrMo, 4137H, etc
直徑 |
50 |
60 |
73 |
89 |
102 |
114 |
127 |
接頭直徑(mm) |
65 |
75 |
105 |
127 |
133.4 |
158.8 |
168 |
厚度(mm) |
6.5 |
7.1 |
9.19 |
9.5/10 |
8.38 |
8.56 |
9.19 |
長度(mm) |
1000~4500 |
1000~4500 |
1500~9500 |
1500~9500 |
3000~9500 |
1500~9500 |
5000-9500 |
Standard |
ASTM, BS, JIS, DIN,GB |
O.D. |
1/2"-24" ? 10-610mm |
W.T. |
SCH10--XXS ? 1.5-60mm |
Length |
5m-12m |
End protection |
Plastic caps |
Outside Coating |
Black painting, anti-corrosion oil, galvanized or ? |
Packing |
Wrapped in bundles by steel strips/bulk |
Delivery |
By sea container |
Production Capacity |
5000 tons per month |
Delivery time |
10-30days depend on your quantity |
Tolorance |
OD :+1% / -1% ?WT: +12.5% / -10% |
Application |
Transportation of oil,gas or fluid,Construction,? |
Main market |
Asia, India, Middle East, America, Europe,Africa |
鋼釬?
釬尾規格:19mm*83/108mm, 22m*83/108mm, 25mm*108/159mm
錐度:4.46 6 7 11 12
長度:0.4m-6m?
鋼釬規格 |
長度 |
重量 |
|
mm |
foot |
||
|
600 |
2' |
1.93 |
800 |
2'6" |
2.54 |
|
1000 |
3'3" |
3.15 |
|
1200 |
3'9" |
3.76 |
|
1500 |
4'11" |
4.68 |
|
1600 |
5'3" |
4.98 |
|
1800 |
5'9" |
5.59 |
|
2000 |
6'7" |
6.20 |
|
2200 |
7'2" |
6.81 |
|
2300 |
7'6" |
7.12 |
|
2400 |
7'9" |
7.42 |
|
2500 |
8'2" |
7.73 |
|
2600 |
8'8" |
8.03 |
|
3000 |
9'10" |
9.25 |
|
3500 |
11'5" |
10.78 |
|
4000 |
13'1" |
12.30 |
|
4500 |
14'8" |
13.83 |
|
5000 |
16'4" |
15.35 |
|
5500 |
18'1" |
16.88 |
|
6000 |
19'7" |
18.30 |
|
采石場，煤礦，交通和其他工程. 通常輕型鑿巖機配套7度鋼釬，重型鑿巖機配套12度鋼釬。 |
|||
  |
4000 |
13'1" |
16.10 |
4700 |
15'4" |
18.90 |
|
5000 |
16'4" |
22.10 |
|
5500 |
18'1" |
22.10 |
|
6000 |
19'7" |
24.10 |
|
規格 |
長度 |
直徑(mm) |
螺紋 |
重量(Kg) |
|
mm |
ft |
||||

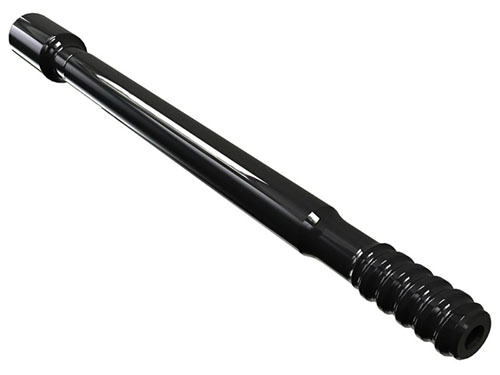

?Hex.rods
|
1000 |
4 |
Hex.32 |
R32-R32 |
7.7 |
1220 |
5 |
R32-R32 |
7.9 |
||
1525 |
6 |
R32-R32 |
9.9 |
||
1830 |
7 |
R32-R32 |
11.9 |
||
2000 |
8 |
R32-R32 |
12.9 |
||
2475 |
9 |
R32-R32 |
15.8 |
||
3090 |
10 |
R32-R32 |
23.7 |
||
3700 |
12 |
R32-R32 |
23.7 |
||
4305 |
14 |
R32-R32 |
27.5 |
||
R32(1 1/4″) |
長度 |
直徑(mm) |
螺紋 |
重量(Kg) |
|
mm |
in |
||||
Round rods
|
1000 |
4 |
Rd.32 |
R32-R32 |
5.8 |
1220 |
5 |
R32-R32 |
7.1 |
||
1525 |
6 |
R32-R32 |
8.8 |
||
1830 |
7 |
R32-R32 |
9.8 |
||
2135 |
8 |
R32-R32 |
12.2 |
||
2435 |
9 |
R32-R32 |
14.1 |
||
3050 |
10 |
R32-R32 |
18.0 |
||
3660 |
12 |
R32-R32 |
21.3 |
||
|
Hex.rods
|
1830 |
6 |
Hex.35 |
R(T)38-R32 |
14.3 |
2475 |
8 |
R(T)38-R32 |
19.2 |
||
3090 |
10 |
R(T)38-R32 |
24.4 |
||
3700 |
12 |
R(T)38-R32 |
19.2 |
||
4305 |
14 |
R(T)38-R32 |
33.9 |
||
4915 |
16 |
R(T)38-R32 |
38.7 |
||
5525 |
18 |
R(T)38-R32 |
43.5 |
||
6135 |
20 |
R(T)38-R32 |
48.2 |
||
Speed Hex.rods
|
3090 |
10 |
Hex.35 |
R(T)38-R32 |
24.4 |
3700 |
12 |
R(T)38-R32 |
29.2 |
||
4305 |
14 |
R(T)38-R32 |
34.8 |
||
4915 |
16 |
R(T)38-R32 |
38.6 |
||
5525 |
18 |
R(T)38-R32 |
43.4 |
||
6135 |
20 |
R(T)38-R32 |
48.2 |
||
